Product Application:
Wide applied in stadiums,advertisement,banks,securities exchange,stations,shoping malls,postal officees,schools,monitoring,restaurants,entertainment,enterprises etc...
Product Specification:

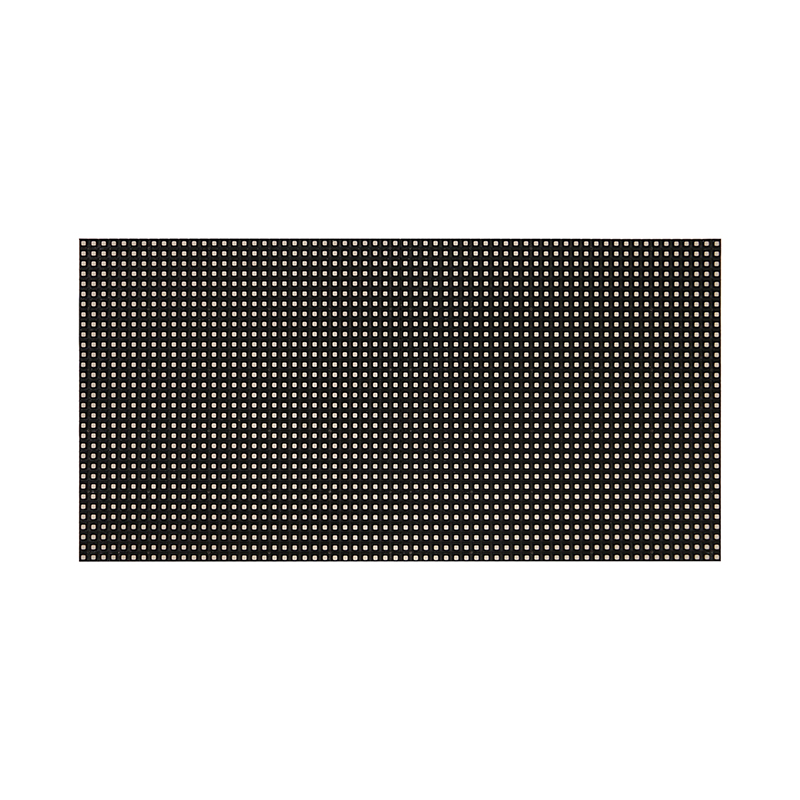

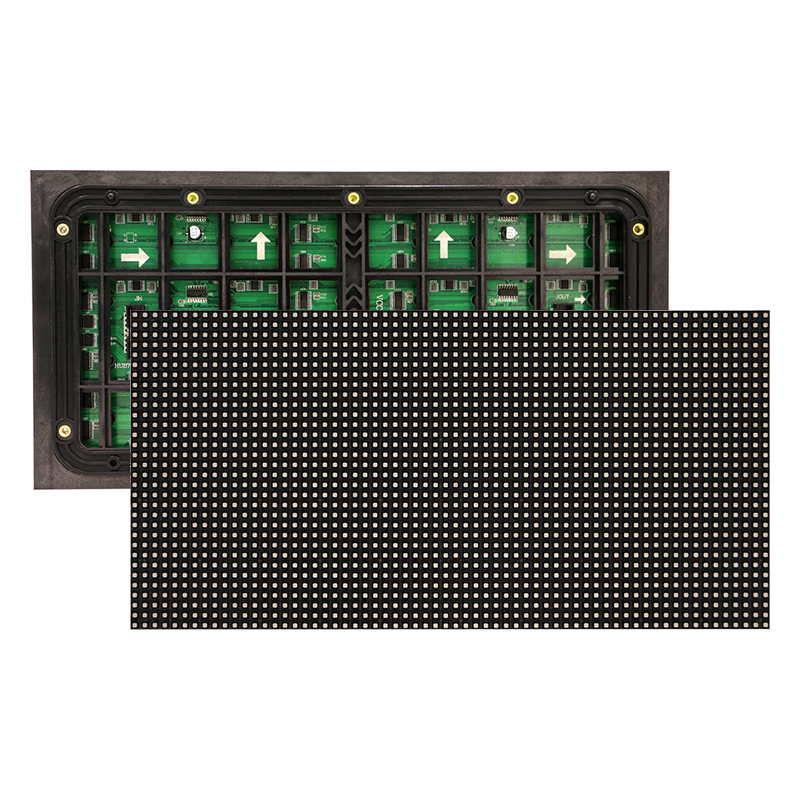

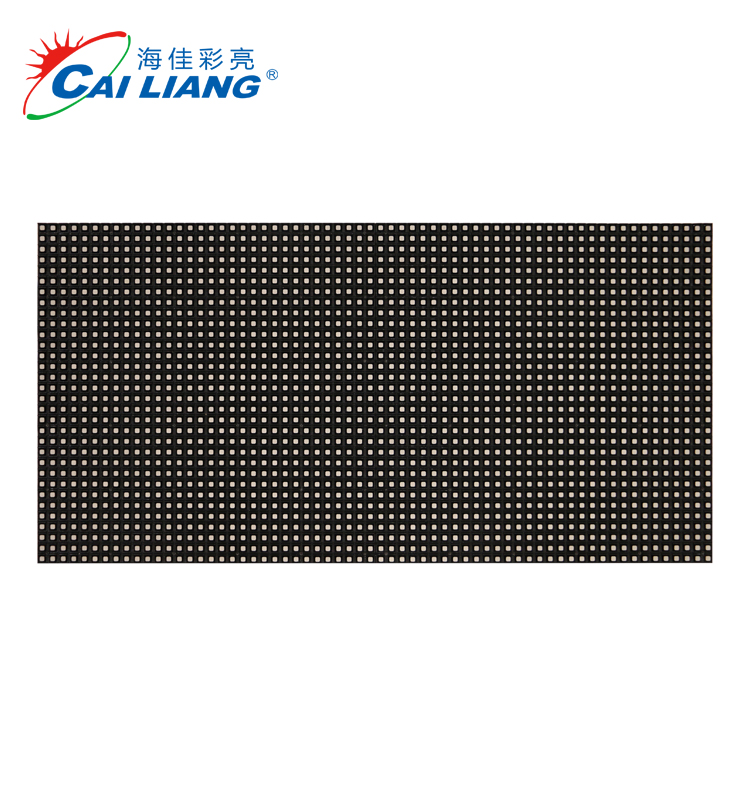

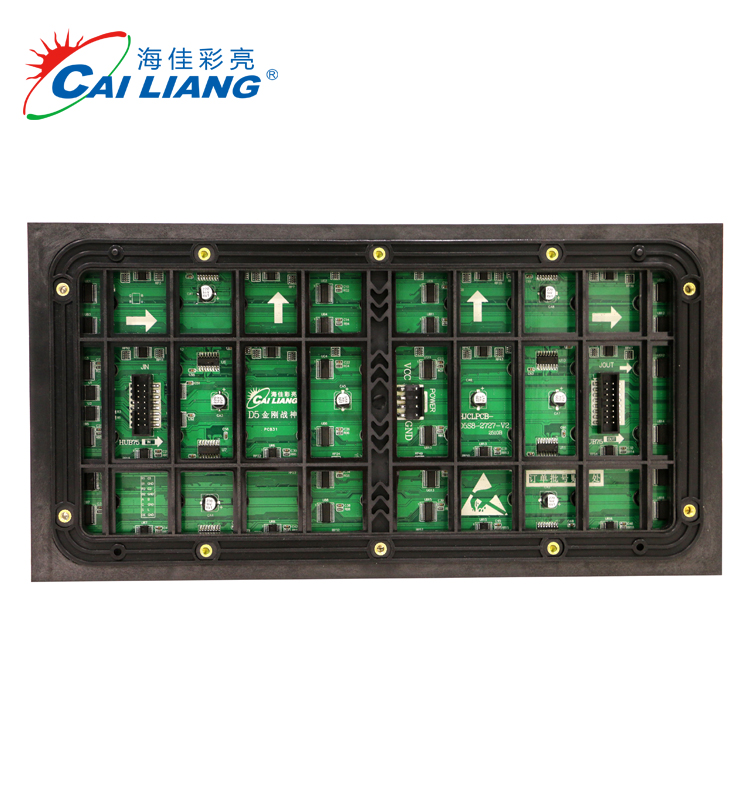

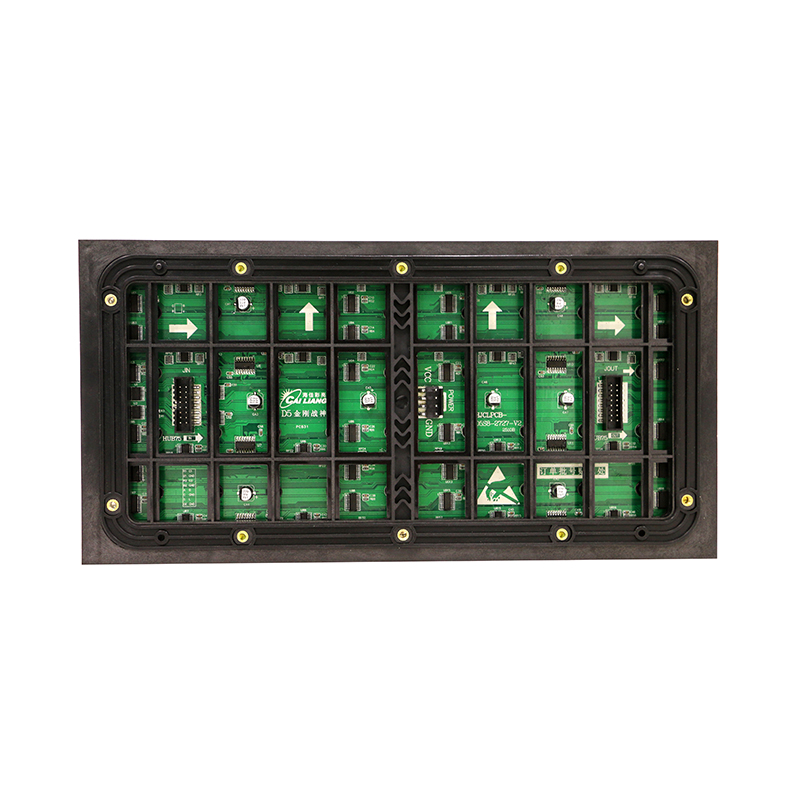

| Name | D5 outdooor led display |
| Plate Size | 320mm*160mm |
| Resolution | 64*32 |
| Pixels pitch | 5mm. |
| Light color | 1R 1G 1B |
| LED lamp | SMD 2727 |
| Brightness | ≥4500cd/sqm |
| Drive mode | 1/8scan, dynamic constant current |
| Pixel density | 40000dots/sqm |
| Refresh rate | ≥1920HZ |
| Failed Rate | <0.0001 |
| Best viewing distance | ≥5m |
| MTBF | 10000 hrs |
| Work life | 100000hrs |
| System operating platforms | WIN7\WINXP\WIN2000 etc. |
| Data communication | RF/S-video/RGB/RGBHV/YUV/YC/COMPOSITION etc. |
| Control system | PCTV card+DVI graphic card+control |
| Control mode | Synchronous/Asynchronous |
| Max power consumption | ≤580W/sqm |
| Maximum Current | 5A |
| Input Voltage(DC) | 4.8-5.5v |
| Operating Environment | Temperature -20℃~+50℃;Humidity, 10%~90%RH. |
| Working Voltage | AC110V/220V ±10% |
IPv6 network supported
